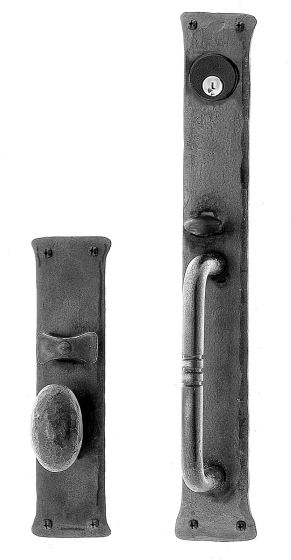

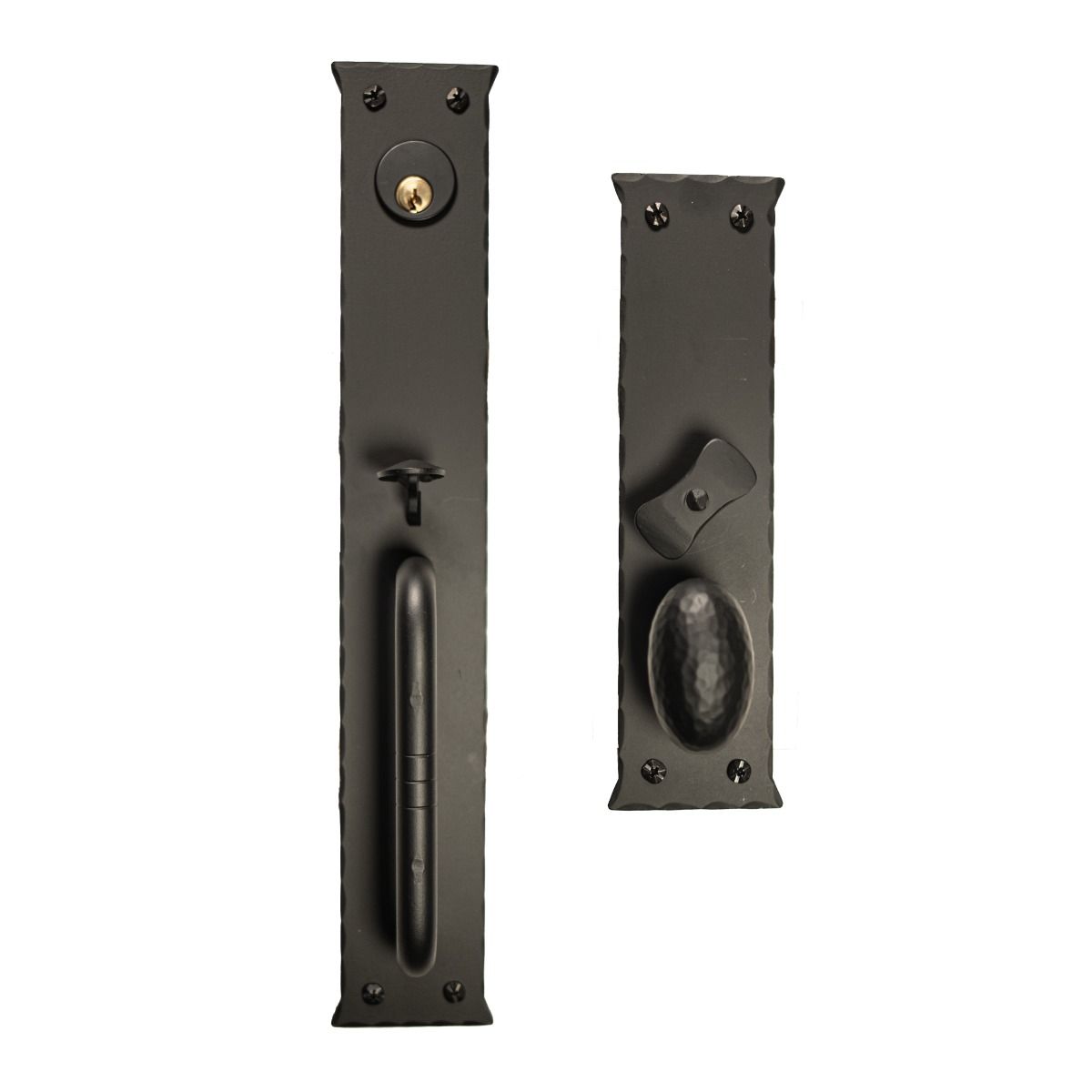

Greenwich Handle and Knob Mortise Lock Set

Large Hand Forged Handle & Knob Mortise Lock Entrance Set.

Set includes all of the essential parts: Mortise Lock Box, a Mortise Lock Key Cylinder (Schlage C-keyway), Exterior Escutcheon Plate with Handle and Interior Escutcheon Plate with Knob. Mounting screws included. Also included are hole location template and installation instructions. Not for use on Pre-drilled doors.

Made of Hand Forged Iron with a Matte Black finish.

Designed doors 1-3/4" thick doors as is. Please specify door thickness if more than 1-3/4" thick.

Lock sets can be keyed alike to an existing Schlage C-keyway key, or additional set(s) being purchased, for an additonal fee. Include Schlage C-Keyway Number for existing key in the box provided.

All mortise sets have a 2-1/2" backset. A backset of  2-3/4" can be special ordered for an additional charge and 2-3 week extra lead time.

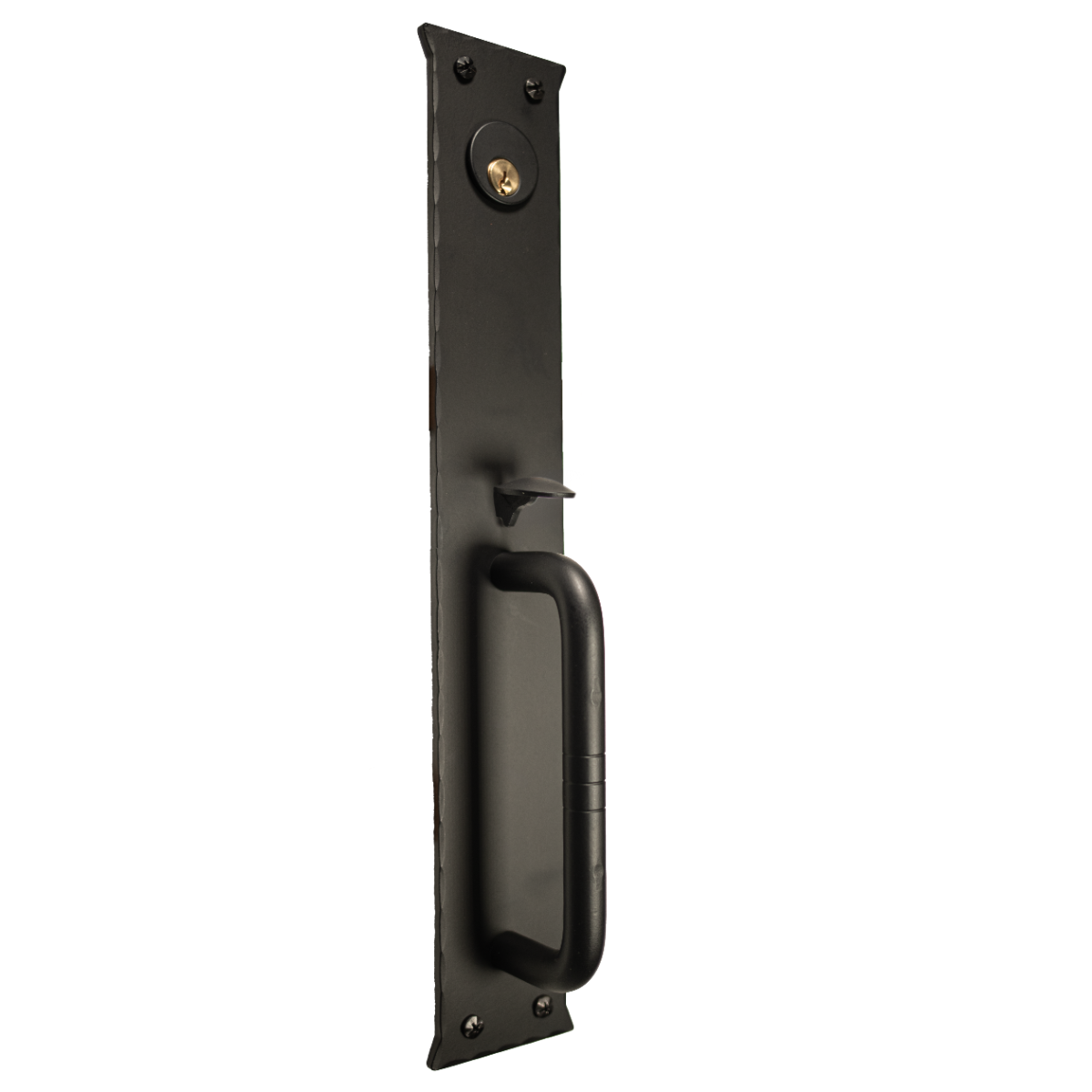

Exterior Plate with Handle is 16" tall x 2 3/8" wide at widest point and has a 1 3/4" projection.

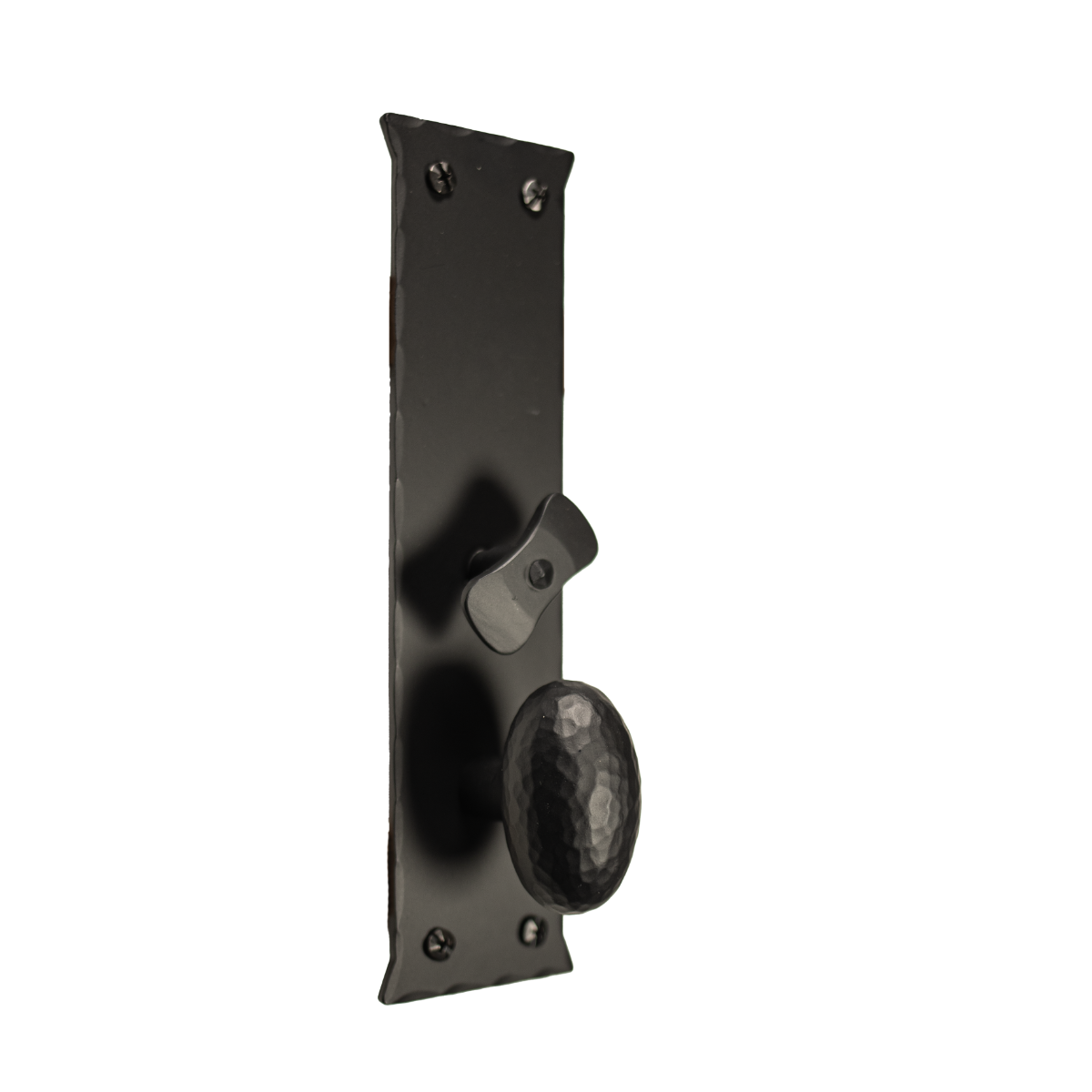

Interior plate is 9 7/8" tall and 2 5/8" wide at widest point. The Knob has a projection of 2 1/2".

Dummy Set available - IUBBD

For any questions please contact our customer service team to assist you.
