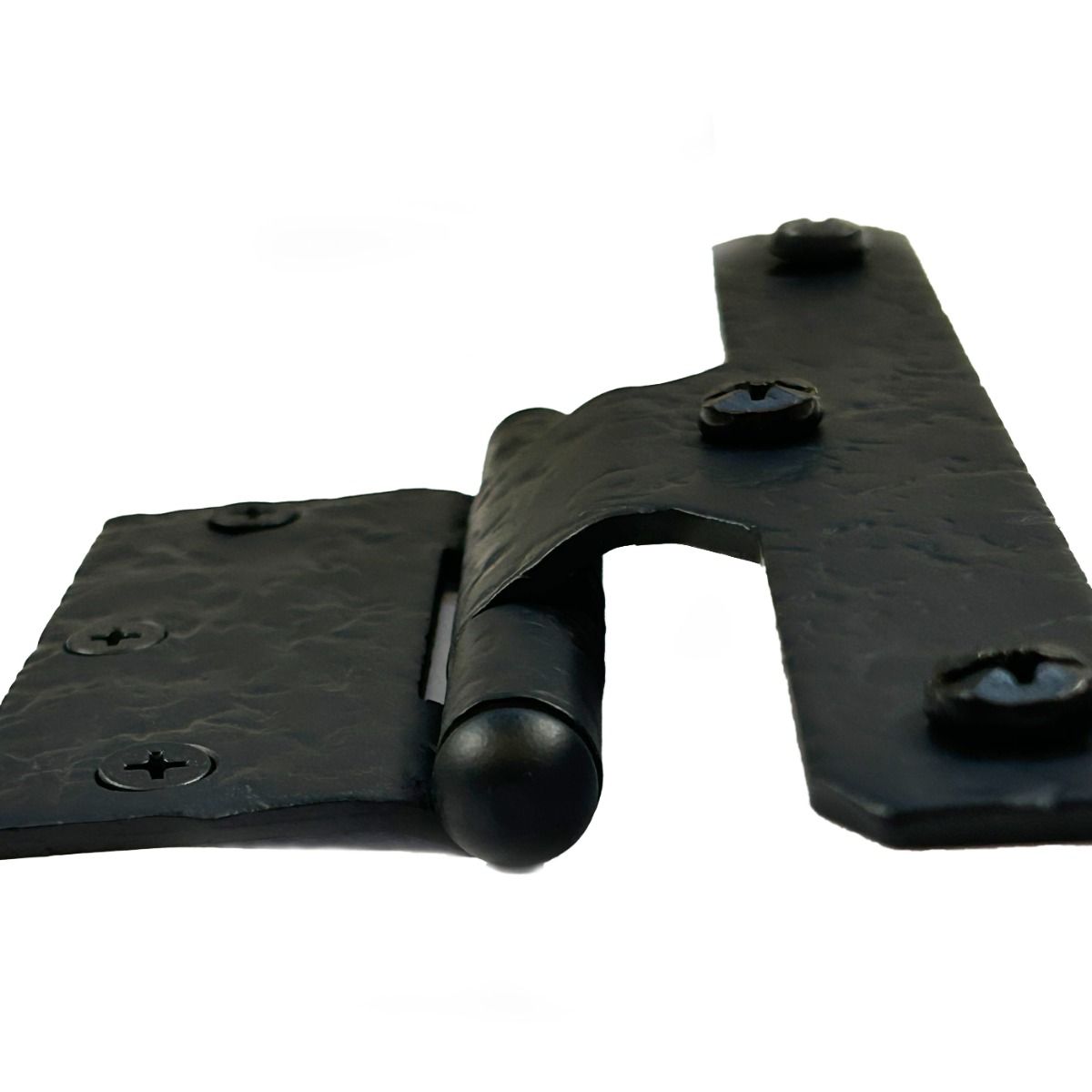

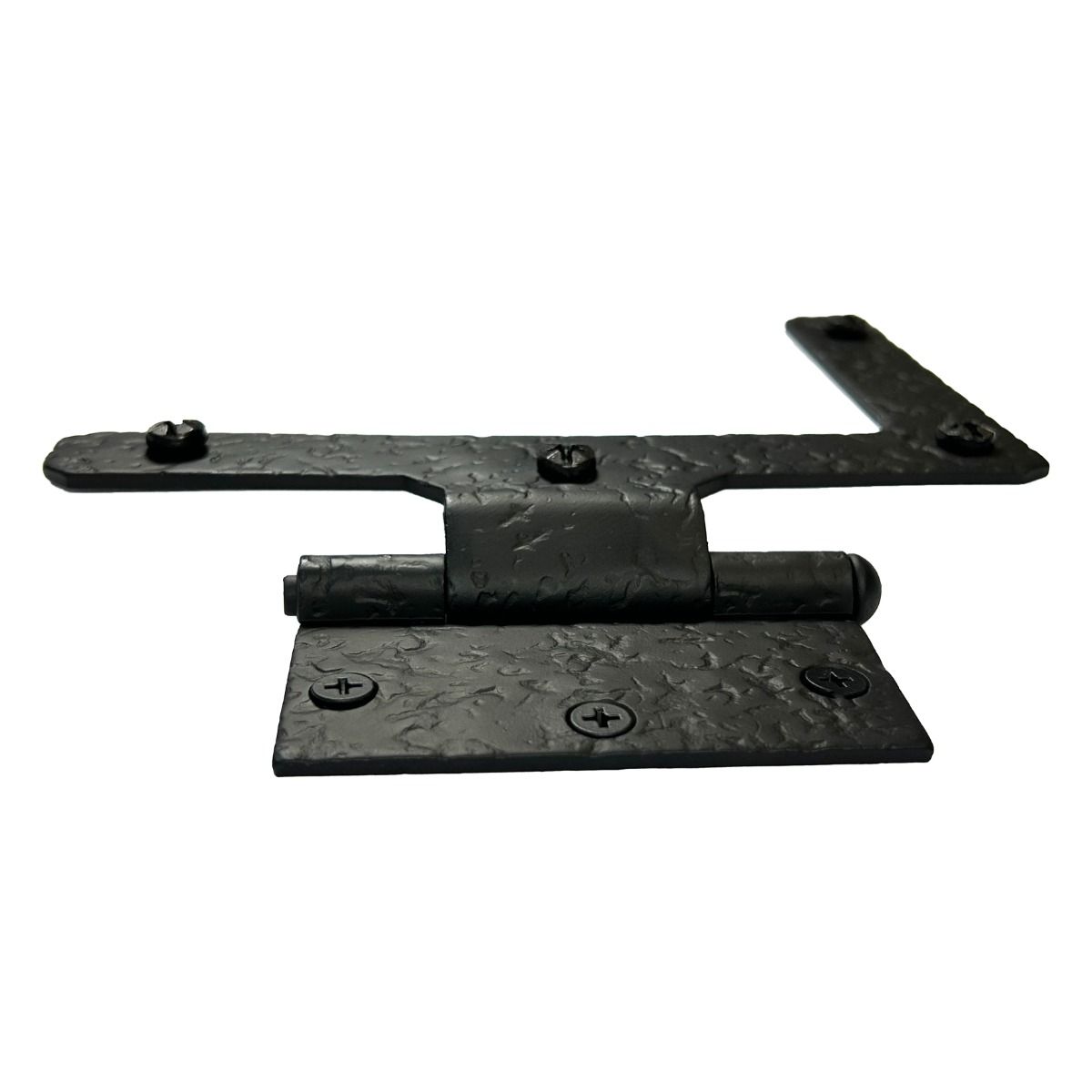

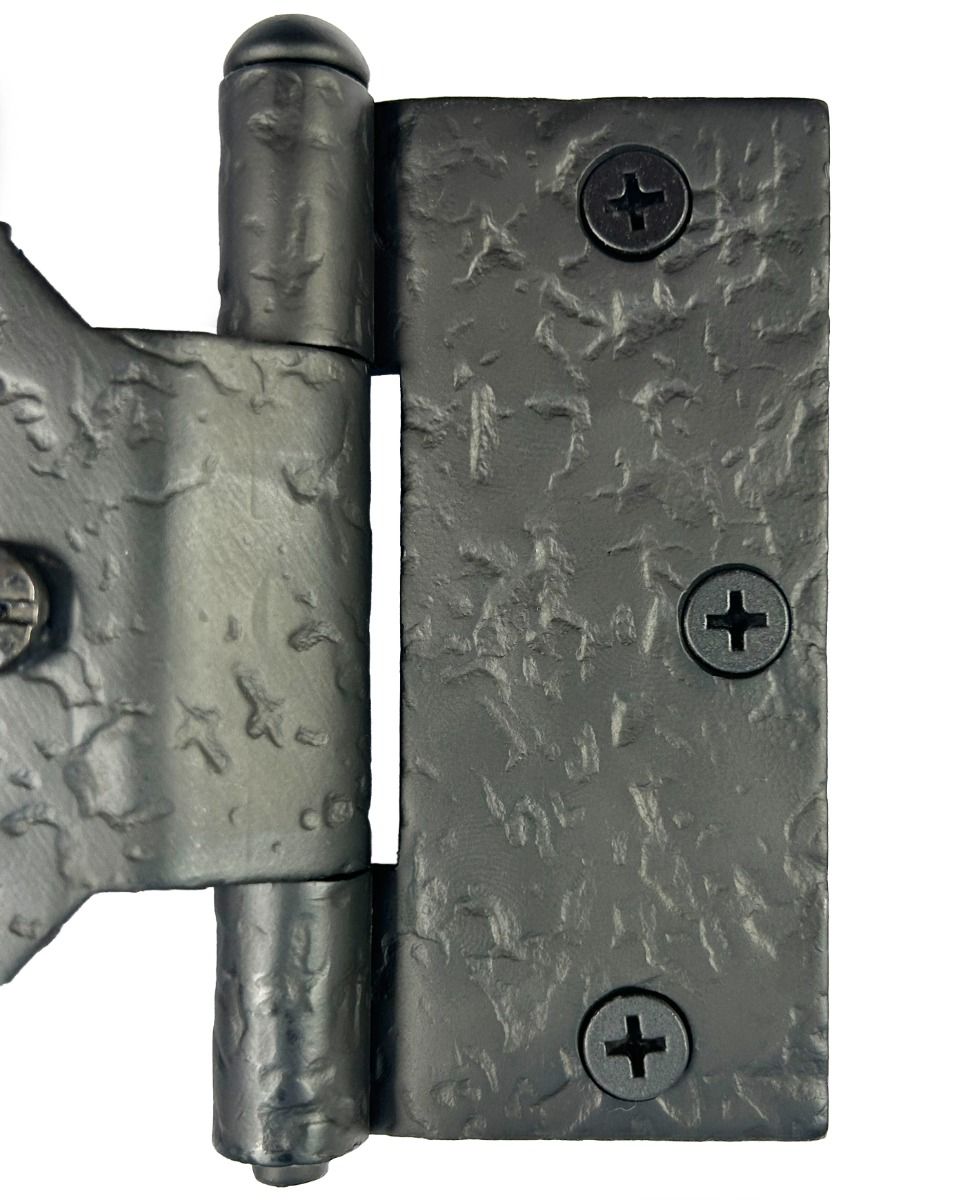

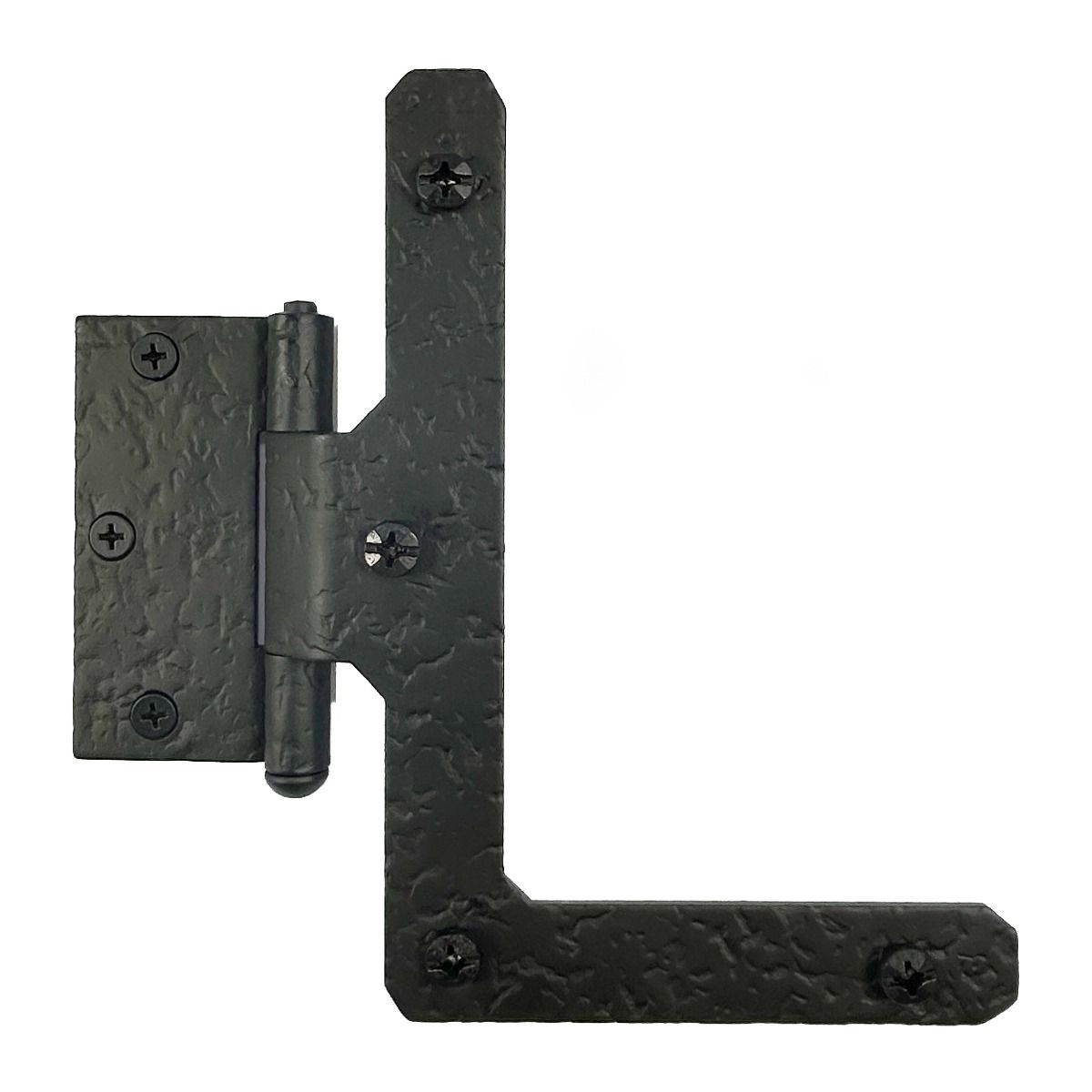

7" L Half Surface Hinge, Pair

$76.00

SKU

RHABQ

Half-Surface H and HL hinges bridge the look of traditional H and HL hinges where the door jam does not allow for a full surface application. Rough iron hinges finished in matte black, make an excellent addition to any traditional, rustic, or farmhouse décor. Whether your home is new or old, add some charm with these timeless door and cabinet hinges.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details for 7" L Half Surface Hinge, Pair

RHABQ - 7" L, Half Surface, Door Hinges

Mortise or half surface mount hinges for the jam and surface mount for door.
Made from American steel.
Has a rough matte black finish.
Removeable pin
Can be used on either right- or left-hand doors.
7" tall by 5-1/2."
Mortise pad is 3-1/2" Tall x 2."
8, 1-1/4” x #12 Pyramid head screws included.
6, 1" x #10 Flat head screws included.
6,
Weight capacity approx. 80 to 90 lbs. for 2 hinges, third hinge can be used for heavier doors.
Can be used on regular doors.
Sold in Pairs.
Proudly made in the USA.

Installation Tips

Pin is removeable for easy installation
Drill pilot holes for door surface with a 9/64” drill bit for hard wood or 1/8” drill bit for soft wood to a 1-1/4” depth.
Drill pilot holes for door jam with 1/8" drill bitfor hardwood or 3/32" drill bit for soft wood to a 1" depth.
Hand tighten screws to preserve the hinges finish.
