2-3/16" Offset Connecticut Shutter Hinge Set

$92.00

SKU

AKABR

Elevate the charm and functionality of your home with Connecticut style shutter hinges. Perfect for those seeking both protection and authenticity, these hinges are designed to withstand the elements while providing a classic touch to your windows. Each set includes four hinges, enough to outfit one window with two shutters. Each stainless steal set comes complete with durable, black stainless-steel screws for easy installation. Transform your home's exterior with a blend of style and resilience.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2-3/16" Offset Connecticut Shutter Hinge Set

Acorn's Connecticut Style Shutter Hinge & Shutter Holdback Installation Video

Details for 2-3/16" Offset Connecticut Shutter Hinge Set

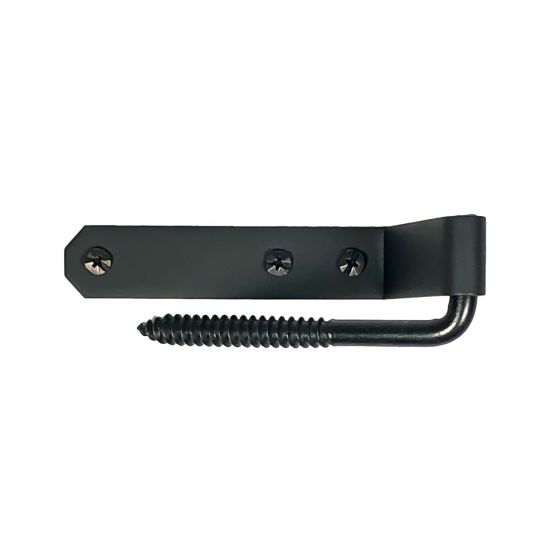

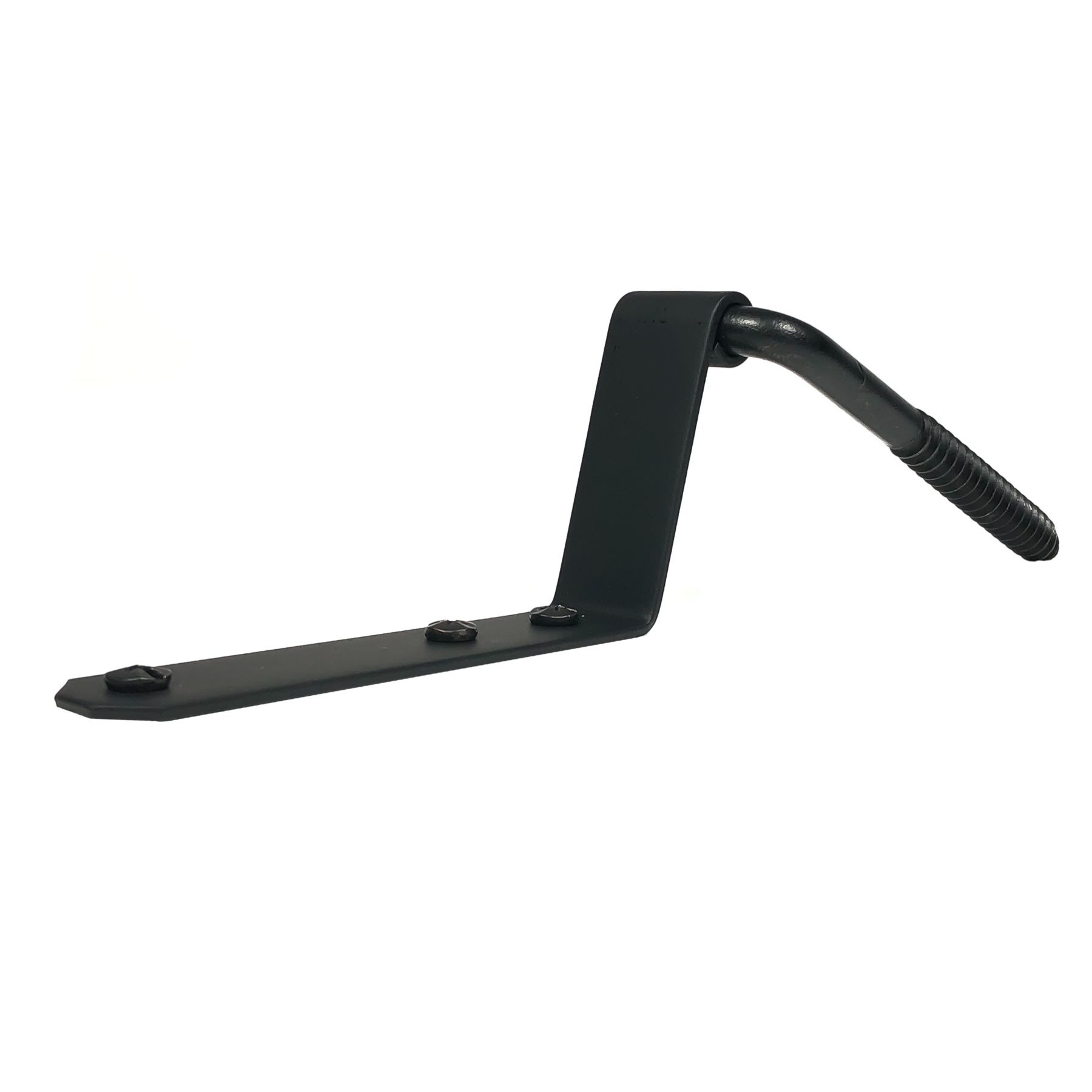

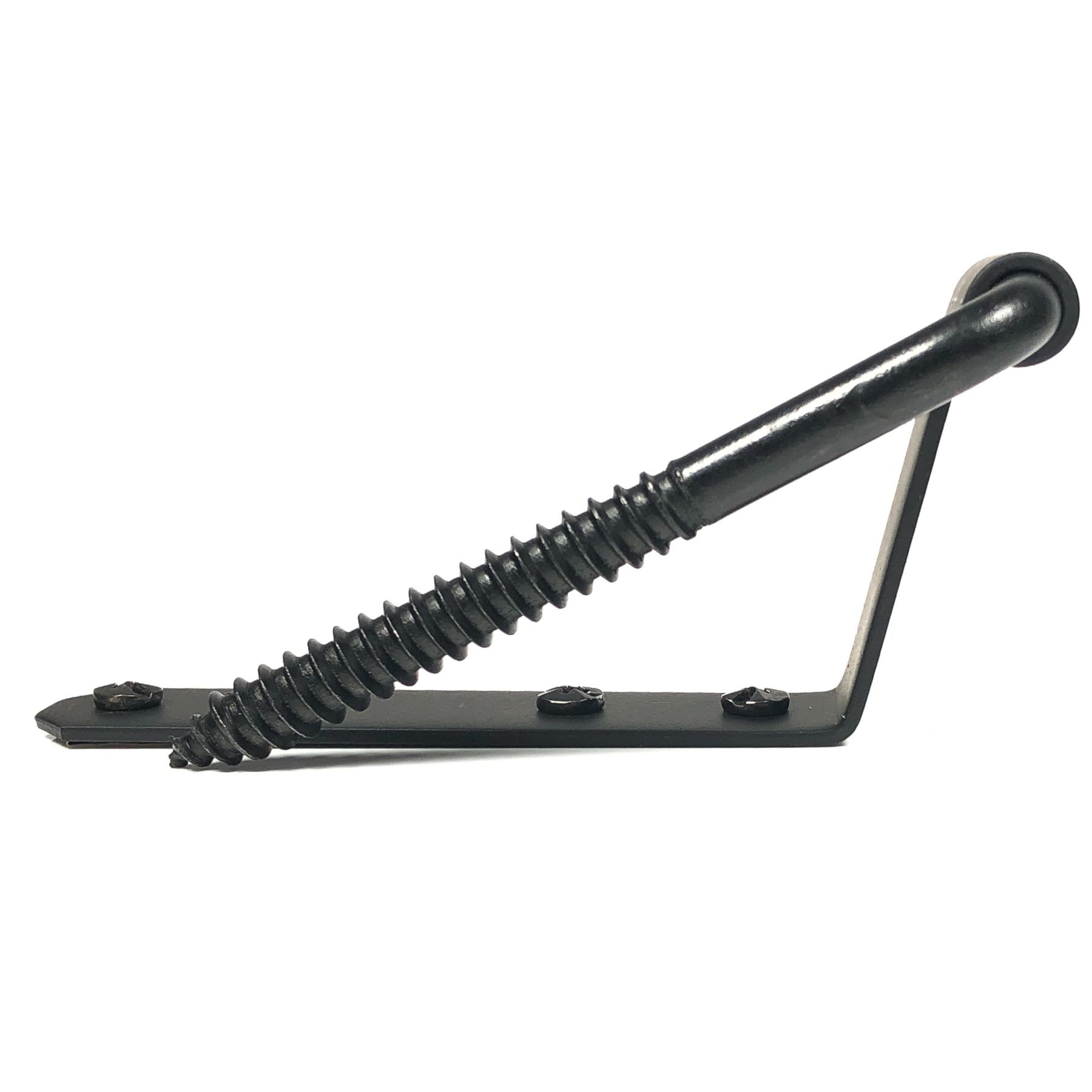

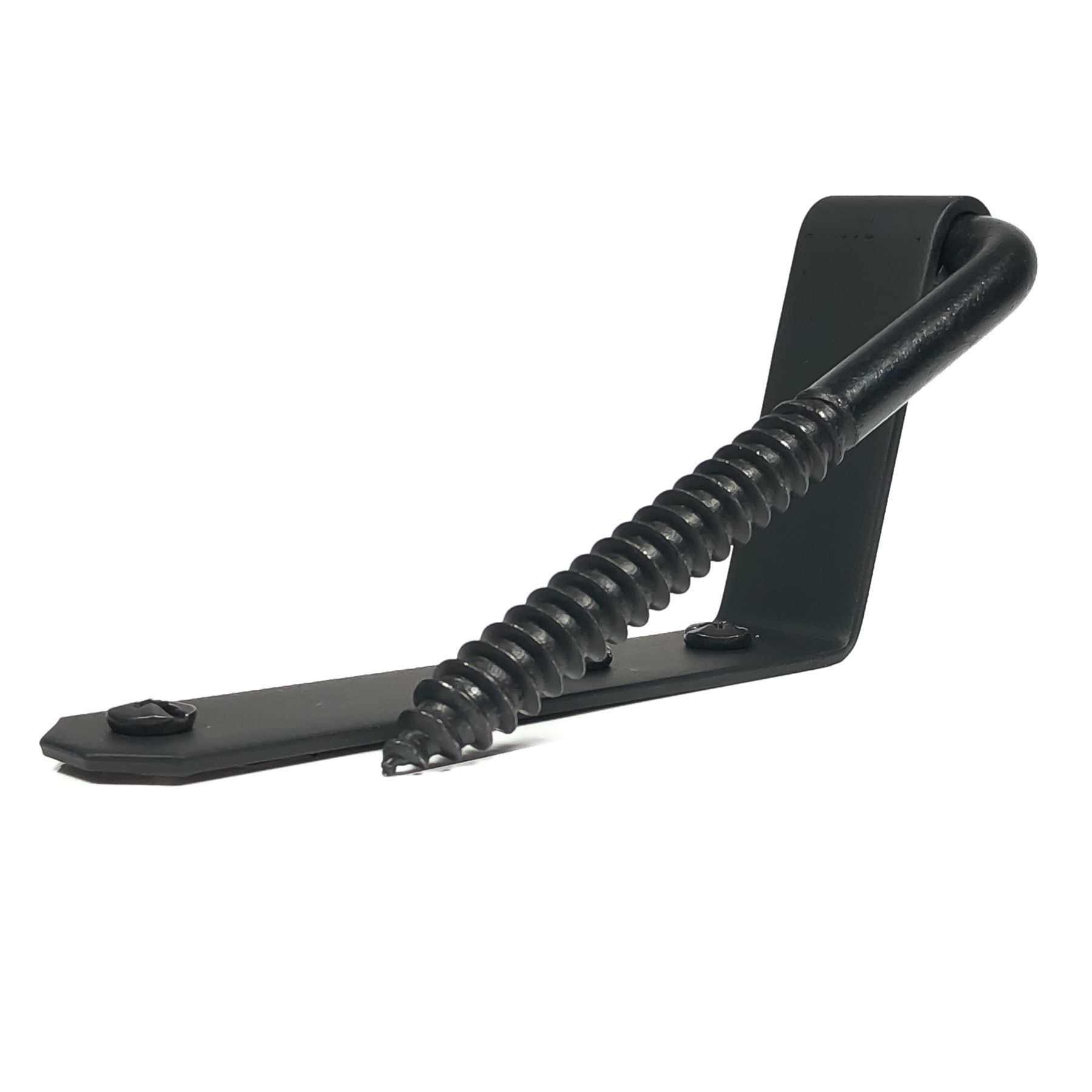

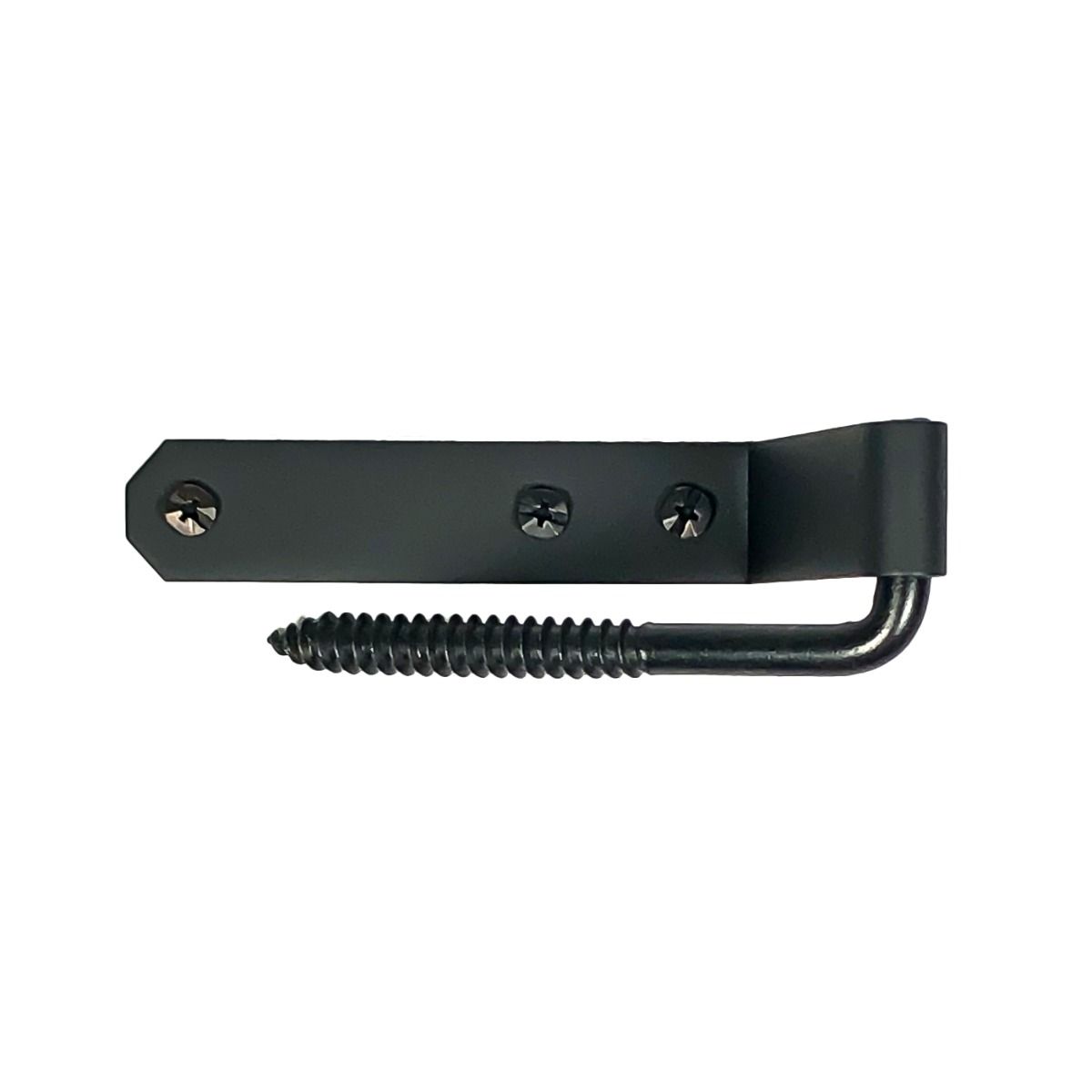

AKABR - 2-3/16" Offset Connecticut Shutter Hinge, Set

Made of stainless steel and finished with matte black paint
Sold in sets of 4, one set is used for one window with 2 shutters
For wood frame or brick applications, anchors included

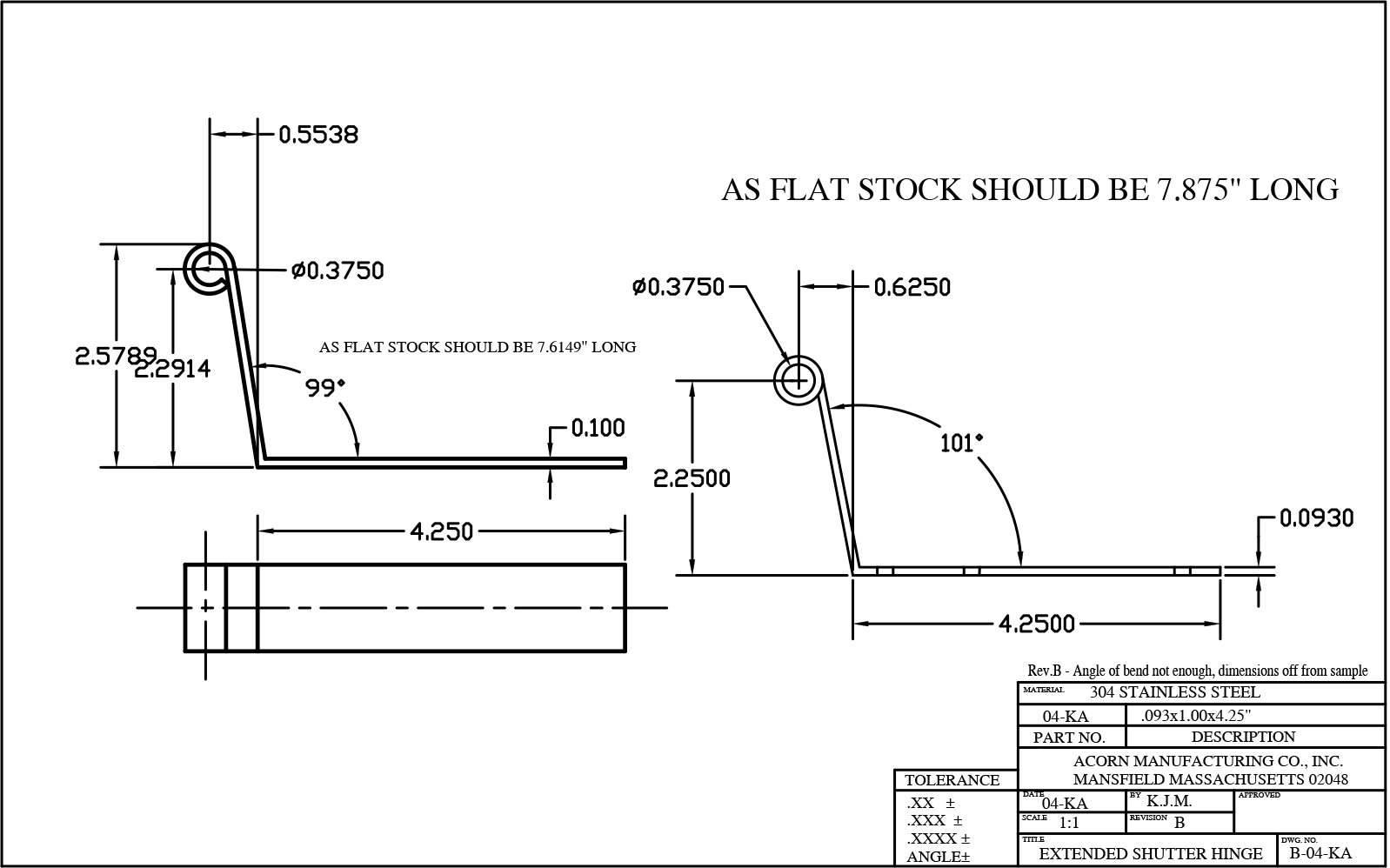

6-1/4" x 1" hinge
5-1/8" long 3/8" stainless steal pintle
Lift off design for easy hanging and removal of shutters
All screws made from stainless steel
12, #8 x 3/4" pyramid head screws included
Need extra screws? Order ASRB9

Installation Tips

Predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood
Hand tighten screws, do not use power tools with screws.
When installing decorative hardwre use hand tools in good condition

Installation Instructions

Holding a shutter and hinge in position, note their location to the window casing and sill.
The location of the “L” half of the hinge should be central to the upper and lower shutter rails. Align the pintle plate to solid window casing.
Pintle mounting screws should extend into the casing. Old construction may require longer screws to fasten to framing.
Position the pintle (pins pointing upward) on the exterior window casing.
Mark the hinge “L” holes (pencil or an awl) to the shutter. Attach the hinge half using two #8 pyramid head screws.
Repeat steps 4 & 5 and attach both the pintle plates to the casing using only one screw.
Check that movement is square and parallel. If satisfactory, hang the mating shutter. Inspect both shutters in the closed position. Re-align if necessary.
While closed, install the remaining screws in both the “L” and pintle plates. It may be easier to lift the shutter off the pintles to install the remaining screws.
