4" Forged Iron Curled Bolt

$60.00

SKU

RL4BP

Functional and stylish, The RL4BP Slide Bolt can be used for any door for added security. Finished in matte black, it will match the rest of your Acorn Hardware. Sold by each, screws included.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details for 4" Forged Iron Curled Bolt

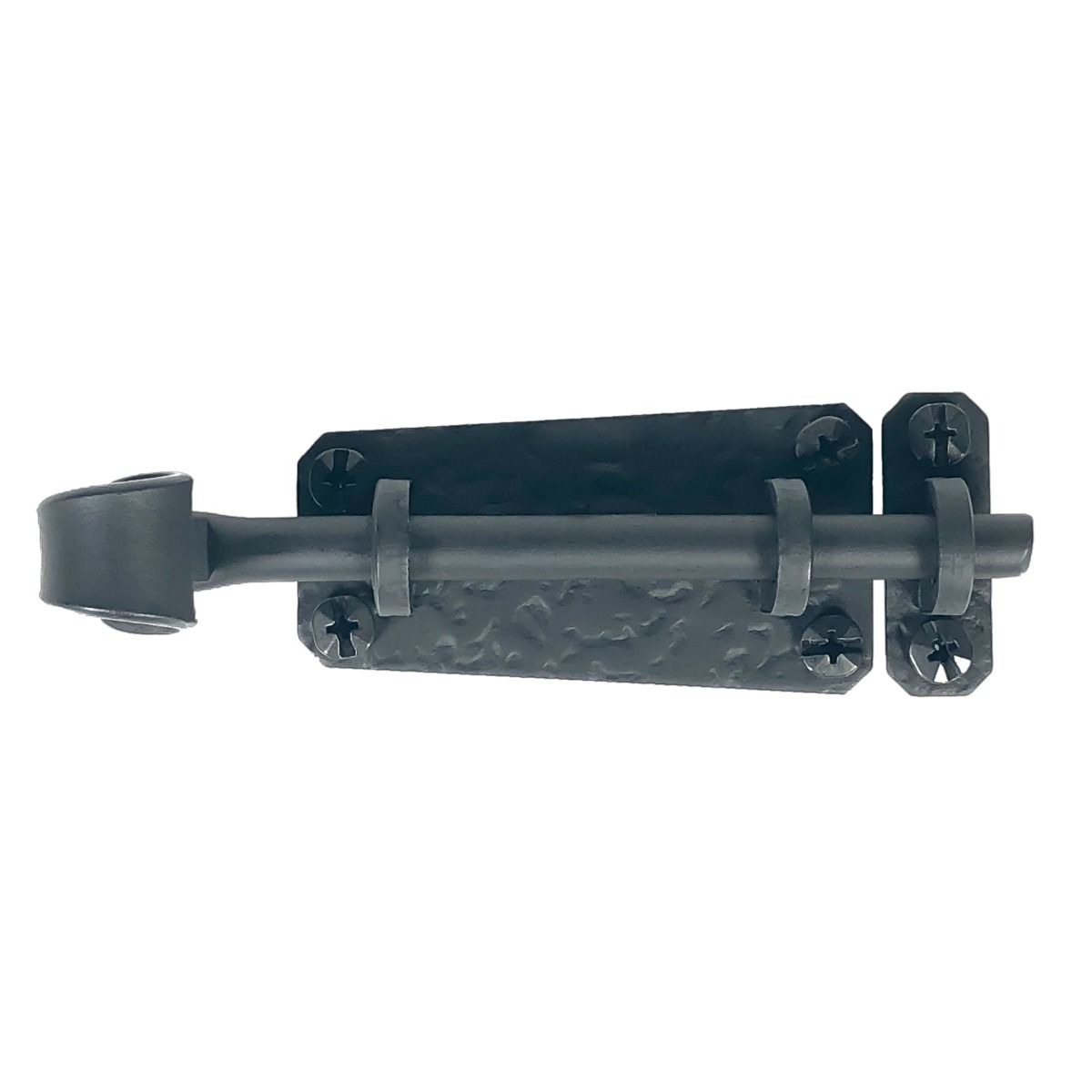

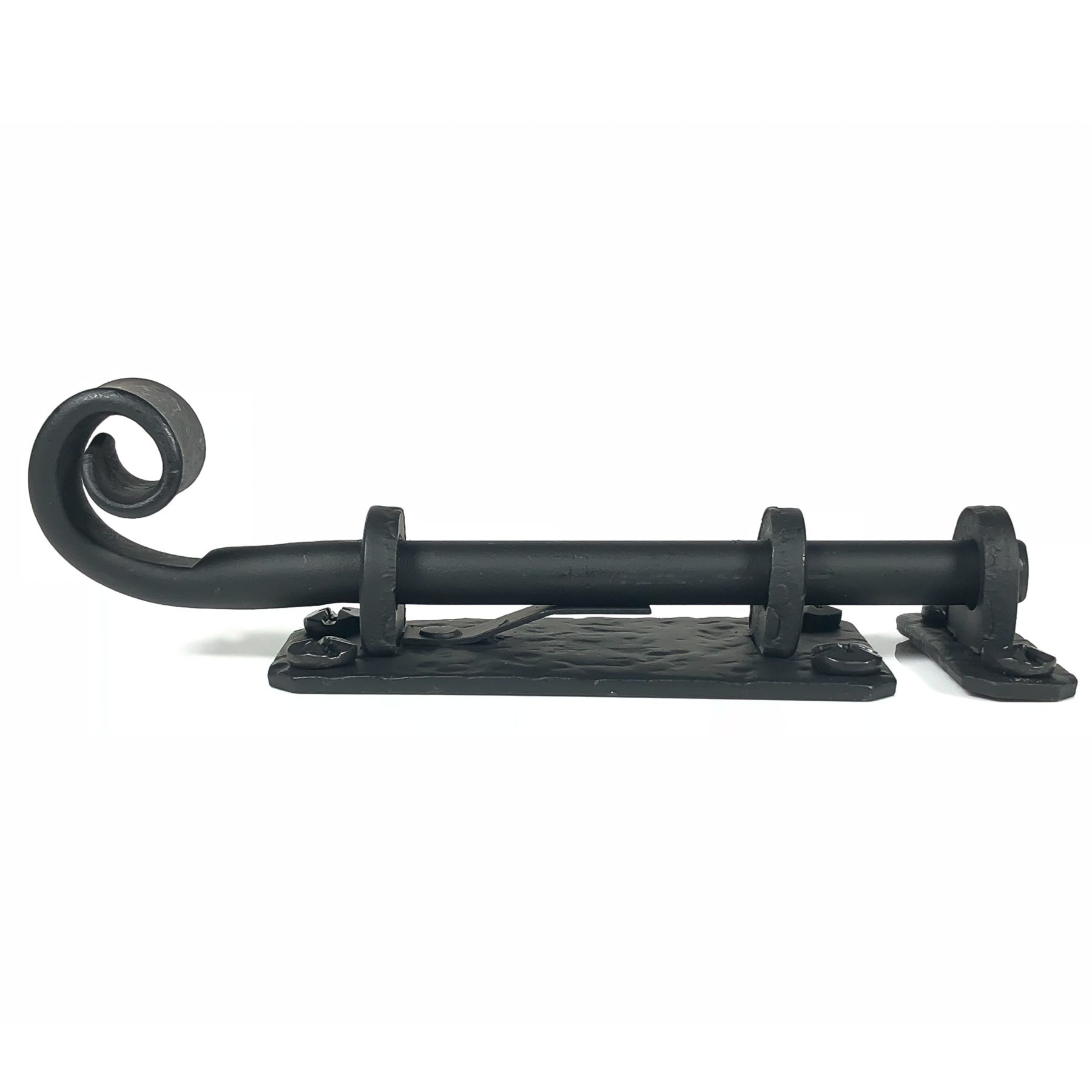

RL4BP - 4" Forged Iron, Curled Slide Bolt

Made of steel with a matte black finish
Rough textured steel

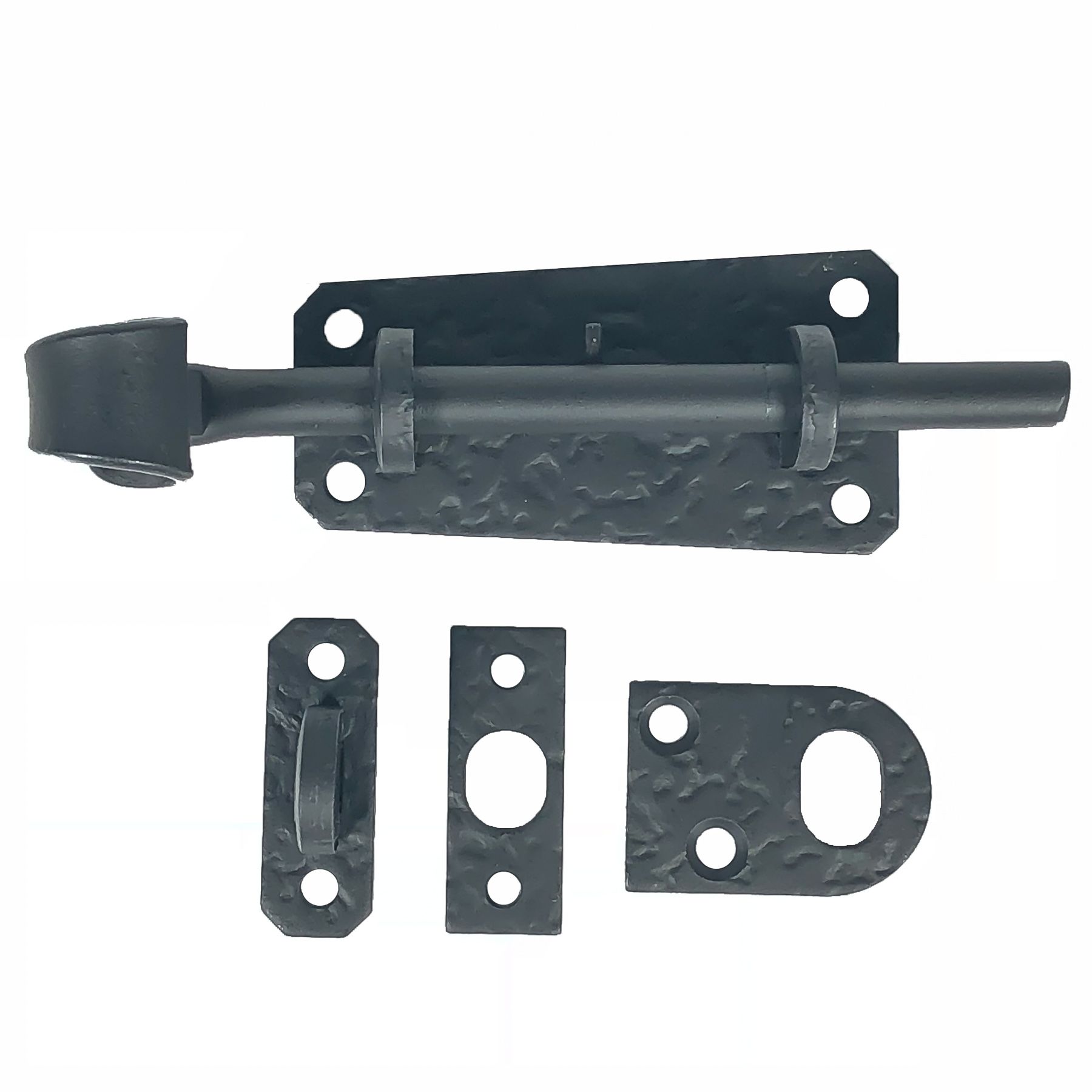

3 strikes included, surface, rim, and mortise
Spring loaded for vertical or horizontal use
1-7/8" throw
Main pad, 1-5/8" x 3-1/4"
3/8" bolt diameter
5-1/8" overall bolt length
1-1/2" projection
All screws made from stainless steel
6, #8 x 3/4" pyramid head and 2, #7 x 1" flat head screws included
Need extra screws? Order ASRB6 and AS9B7
Made in the USA

Installation Tips

For bolt and surface strike install with #8 screws, predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood
For mortise and rim strike install with #7 flat head screws, predrill with 3/32" drill bit for softwood or 7/64: drill bit for hardwood
Hand tighten screws, do not use power tools with screws.
When installing decorative hardwre use hand tools in good condition
