22-3/4" Forged Iron Cane Bolt

$72.00

SKU

ALEBP

Functional and stylish, The ALEBP Cane Bolt can be used for any door for added security. Finished in matte black, it will match the rest of your Acorn Hardware. Sold by each, screws included.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details for 22-3/4" Forged Iron Cane Bolt

ALEBP - 22-3/4" Forged Iron Cane Bolt

Made of steel with a matte black finish

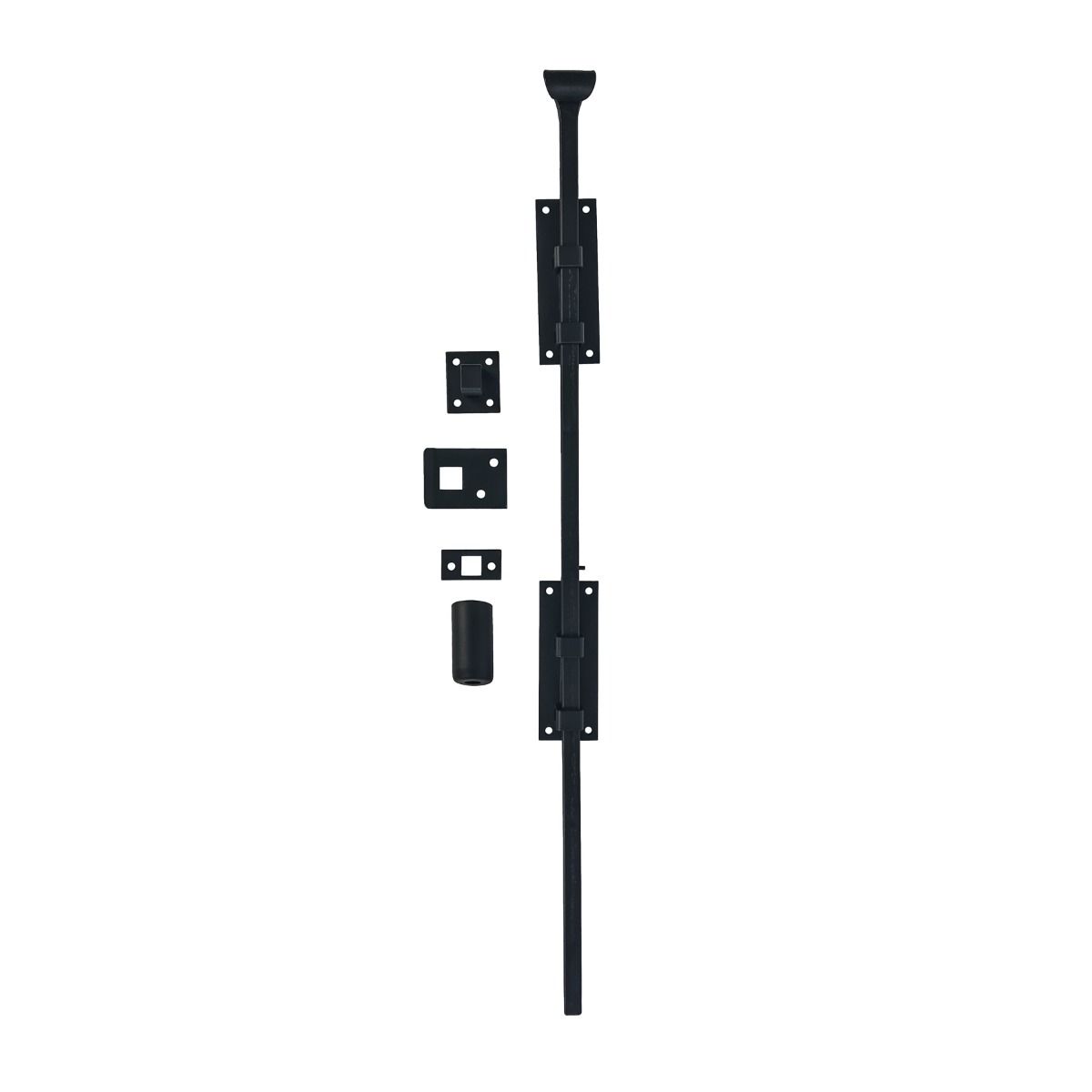

Surface strike, mortise strike, and cane cup included
Spring loaded for vertical or horizontal use
Variable throw based on pad placement
Main pads, 1-1/2" x 4"
7/16" square bolt
22-5/8" overall bolt length
1-1/4" projection
All screws made from stainless steel
8, #8 x 3/4" pyramid head, 4, #8 x 1" pyramid head, and 2, #7 x 1" flat head screws included
Need extra screws? Order ASRB6, ASFB6 and, AS9B7
Made in the USA

Installation Tips

For bolt and surface strike install with #8 screws, predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood
For mortise and rim strike install with #7 flat head screws, predrill with 3/32" drill bit for softwood or 7/64: drill bit for hardwood
Hand tighten screws, do not use power tools with screws.
When installing decorative hardwre use hand tools in good condition
